Telescopic Runner

Telescopic Runner Structure & Features

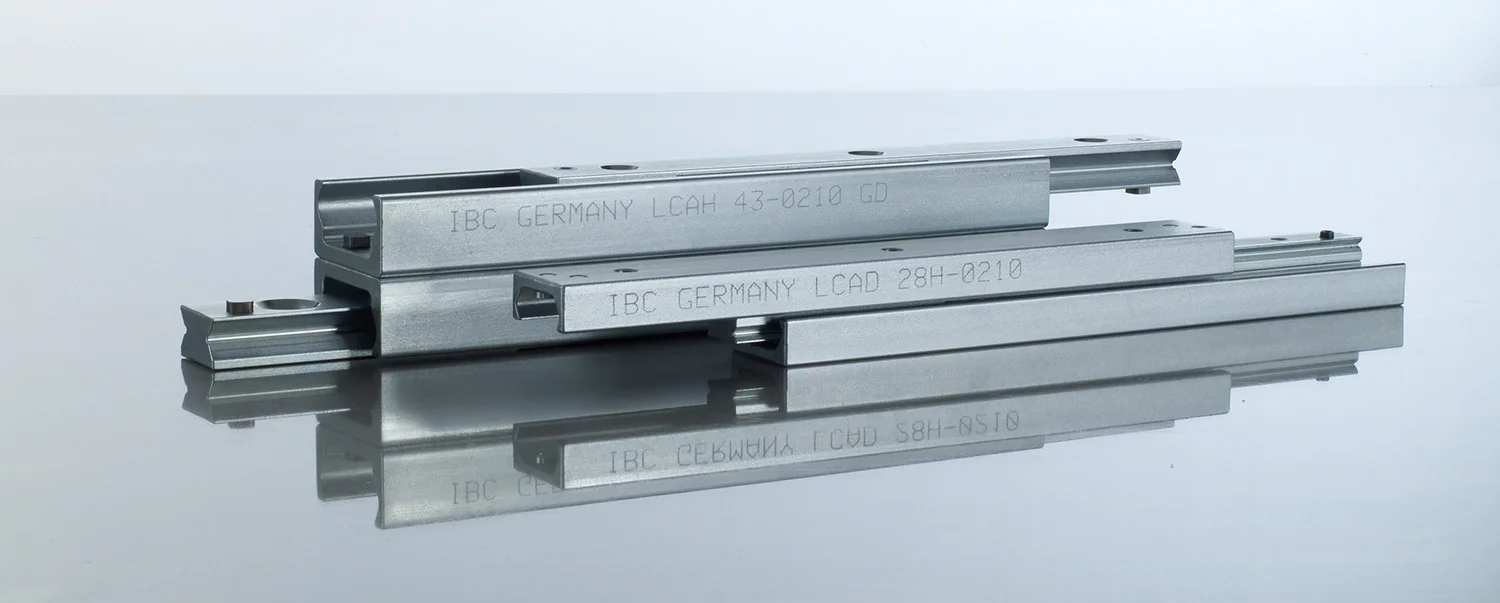

IBC TELESCOPIC-Runners are compact, high-precision telescopic roller bearings available in full or partial extension types, with both roller-guided and cage-guided versions. The system operates by moving an inner profile within an outer rail using balls or rollers that run smoothly in guided tracks. These guides ensure precise, play-free motion thanks to four-point contact ball raceways or identical roller tracks. The design allows for low friction, enabling smooth operation with minimal force, even under high loads and speeds. Their compact size, high load capacity, rigidity, and quiet operation make them ideal for use in confined spaces.

Typical Applications:

Transport engineering: Door opening systems, battery boxes, etc.
Handling and automation systems.
Logistics, shelf access equipment.
Medical technology.
Installed equipment in rescue, and municipal-utility vehicles
Aerospace.
Printing machines.

Download Catalogue

Products

LCAE

This series allows for full extension and features a very flat design, achieved through an improved S-shaped intermediate profile. It is distinguished by high load ratings and excellent stiffness. Variants are available for either one-way or two-way pullout. Unlike the LCAS series, this series comes equipped with rollers, which are especially beneficial for vertical applications, high travel speeds, or environments with contamination

DOWNLOAD CATALOGUE

LCAS

The LCAS series combines robust construction with high load capacity. It offers a full-extension stroke that ensures excellent accessibility and serviceability. With options for one-way or two-way extension and a range of sizes, it offers versatile design flexibility.

DOWNLOAD CATALOGUE
