The IBC FLEXY-Runner is a versatile curve guide system designed for smooth, non-linear motion. It supports both constant and variable curves, offering a flexible, cost-effective solution tailored to customer specifications. With movable roller carriers and precise engineering, it ensures reliable, quiet performance even along complex rail paths.
Typical applications:
- Housings for machines
- Food industry
- Door-guidance systems in train doors
- Maritime applications
- Packaging industry
- Automation industry
RAILS

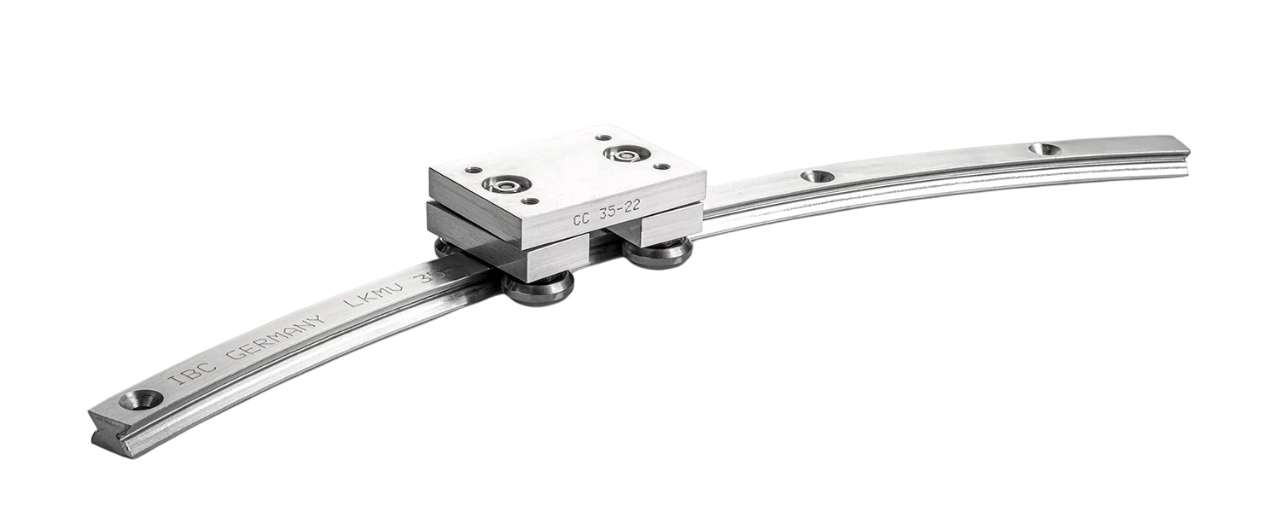

With our new FLEXY-Runner guide, non-linear motion can be realised. That means it is possible to run constant radii as well as variable curves. This system offers a very flexible and economical solution. The corresponding carriages are equipped with mobile roller carriers and allow for a smooth run even with complex rail tracks.

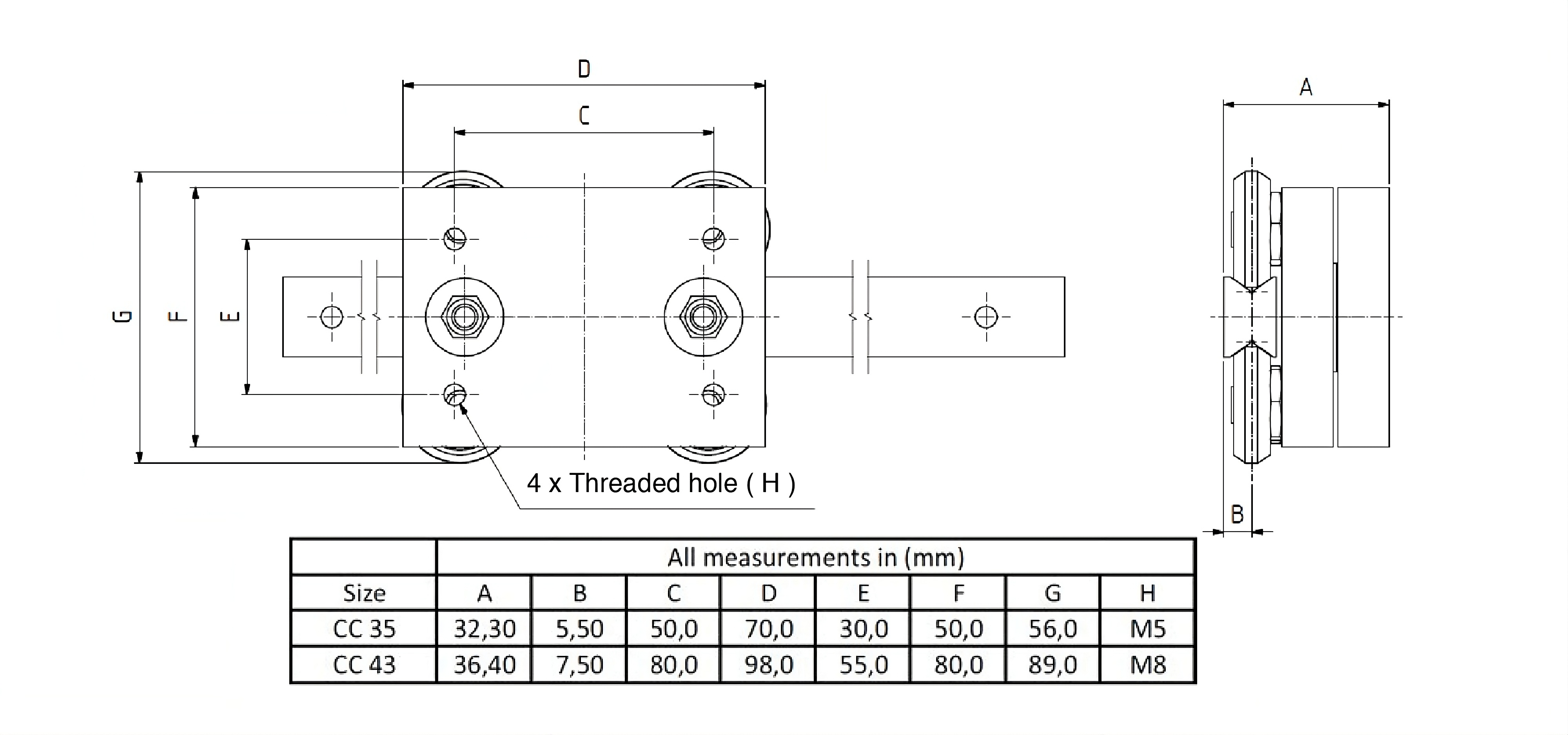

CC 35: 15,5 x 10,10 mm
CC 45: 23,1 x 13,50 mm
