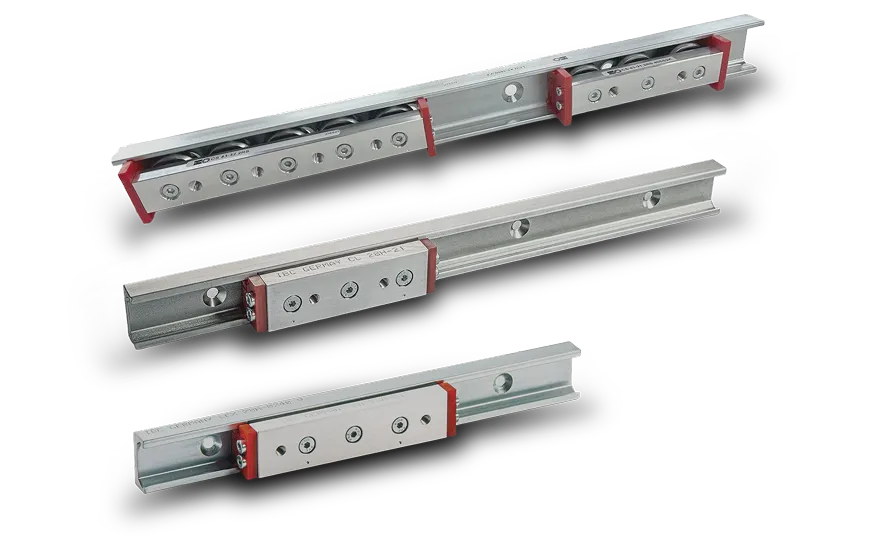

Eco runner slider

Standard Fixed Sliders
CN AXS Series

Standard Float Sliders
CN AUS Series

Slim Fixed Sliders
CS-AX Series

Slim Float Sliders
CS-AU Series

Standard Fixed Sliders
CL AXS Series

Standard Float Sliders
CL AUS Series

STANDARD FIXED SLIDERS – CN AXS Series

The IBC CN AXS Series fixed sliders are designed for low friction, high accuracy, and superior load capacity, making them ideal for demanding linear motion applications. Featuring a taller and wider housing than the CL range, they provide enhanced rigidity and performance. Available in 3-roller (3R) and 5-roller (5R) configurations, in sizes 28 and 43 (5R available in size 43 only).

KEY FEATURES

  • Robust CN body design for increased stiffness and contact area
  • Fixed slider configuration for precise fully constrained motion
  • 3-roller option for improved load capacity in a compact format
  • 5-roller option delivering maximum rigidity and load support

BEST FOR

  • High-precision and heavy-duty machinery
  • Applications requiring greater stiffness than CL series sliders
  • Systems with high loads demanding duty cycles and accuracy requirements
KD-CN 43-21.2RS.AXS

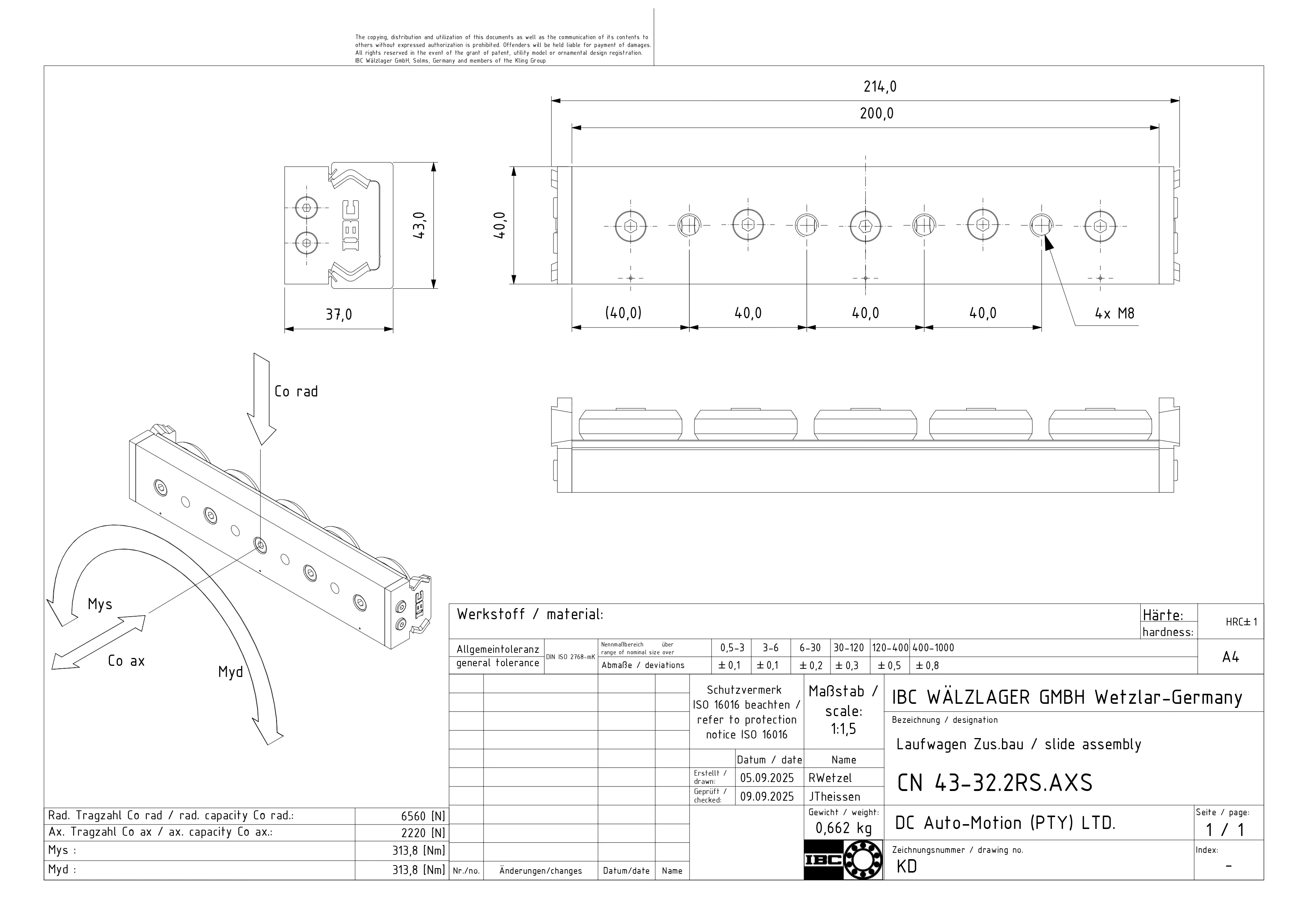

KD-CN 43-32.2RS.AXS

STANDARD FLOAT SLIDERS – CN AUS SERIES

The CN AUS Series float sliders are designed to compensate for misalignment between parallel rails by allowing controlled lateral movement. This helps prevent binding, reduce system stress, and maintain smooth, reliable motion. Featuring the robust CN body design, they are available in 3-roller and 5-roller configurations for applications requiring both stiffness and float capability.

KEY FEATURES

  • Floating design absorbs mounting tolerances and rail misalignment
  • Rigid CN body for enhanced stability and load handling
  • 3-roller option for balanced stiffness with float functionality
  • 5-roller option delivering maximum load capacity and stability while maintaining float

BEST FOR

  • Systems with mild to moderate alignment variation
  • High-load applications requiring both rigidity and installation tolerance
  • Industrial environments with demanding duty cycles and precision needs

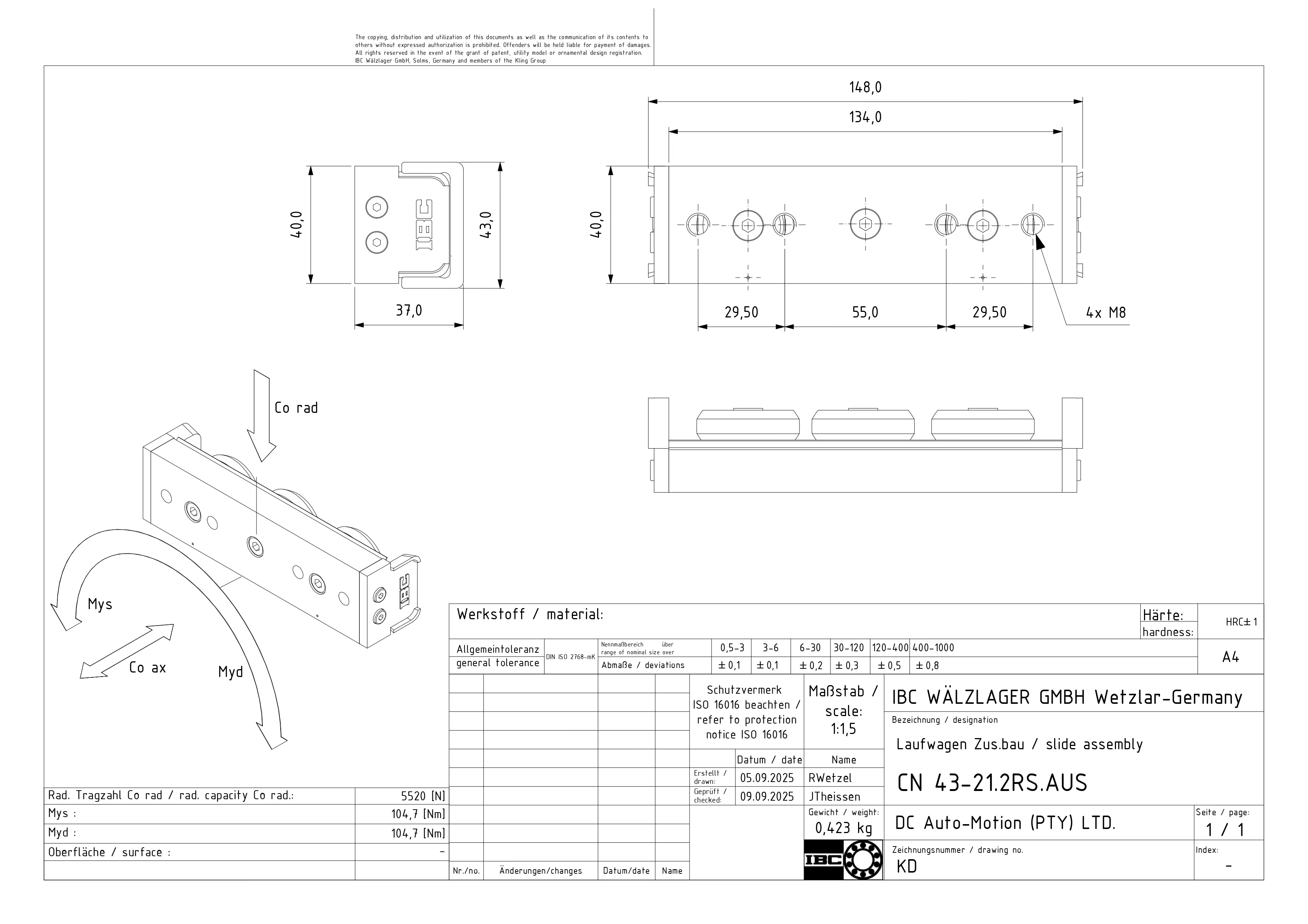

KD-CN 43-21.2RS.AUS
KD-CN 43-32.2RS.AUS

SLIM FIXED SLIDERS – CS-AX SERIES

The CS-AX Series slim fixed sliders are available in 3-roller and 5-roller configurations, offering a compact, low-profile design ideal for space-constrained applications. With a reduced height of 25 mm compared to standard 40 mm sliders, they deliver accurate, fully constrained motion while maintaining impressive load capacity and stiffness. Available in sizes 28 and 43.

KEY FEATURES

  • Ultra-slim housing for installations with limited vertical clearance
  • Fixed slider design ensuring precise stable motion
  • 3-roller option for compact medium-load applications
  • 5-roller option for increased load capacity and improved stability in tight spaces

BEST FOR

  • Compact automation and machine designs
  • Applications with restricted installation height
  • Medium to higher load systems requiring precise guidance in limited space

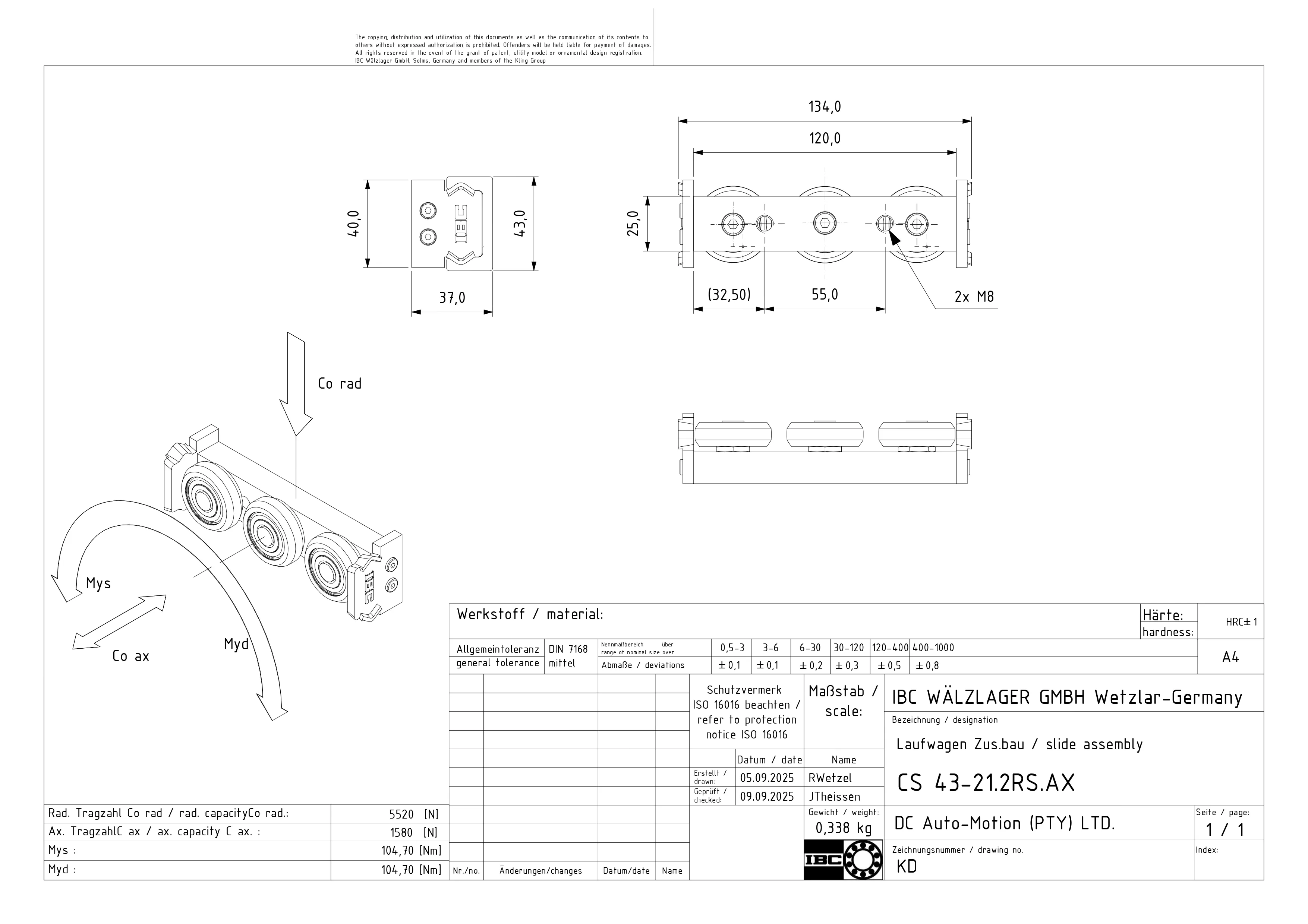

KD-CS 43-21.2RS.AX

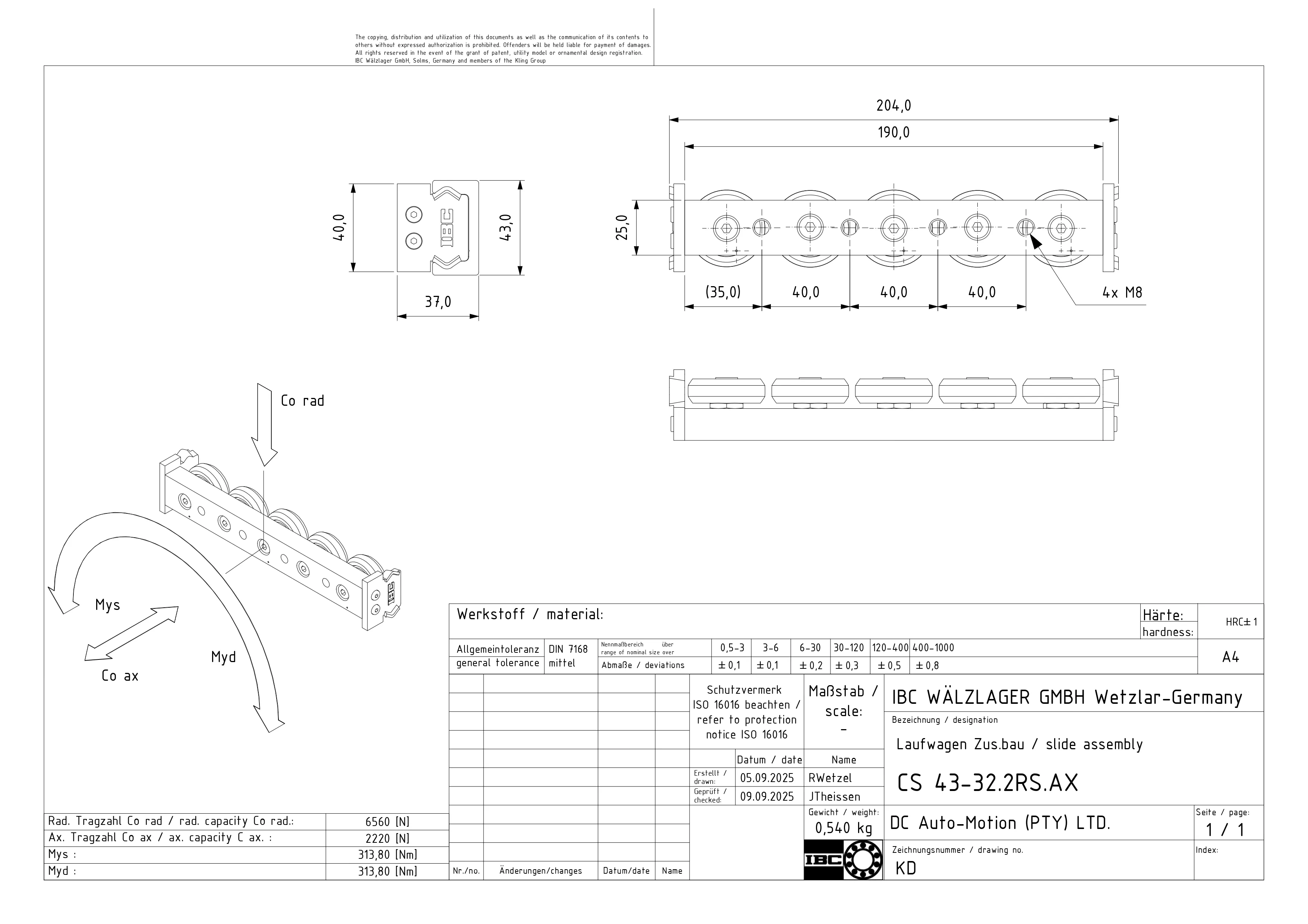

KD-CS 43-32.2RS.AX

SLIM FLOAT SLIDERS – CS-AU SERIES

The CS-AU Series slim float sliders combine a compact, low-profile design with float functionality to accommodate rail misalignment, mounting tolerances, and thermal expansion. Ideal for space-restricted machines, they are available in 3-roller and 5-roller configurations in sizes 28 and 43, delivering smooth motion with built-in flexibility.

KEY FEATURES

  • Slim CS housing suited for tight installation environments
  • Floating design compensates for alignment variation and system movement
  • 3-roller option for compact light-to-medium load applications
  • 5-roller option for improved stability contact area and load capacity while maintaining float

BEST FOR

  • Compact automation and machine designs requiring alignment flexibility
  • Light to higher load applications in restricted spaces
  • Long-stroke systems needing smooth travel with controlled float behaviour

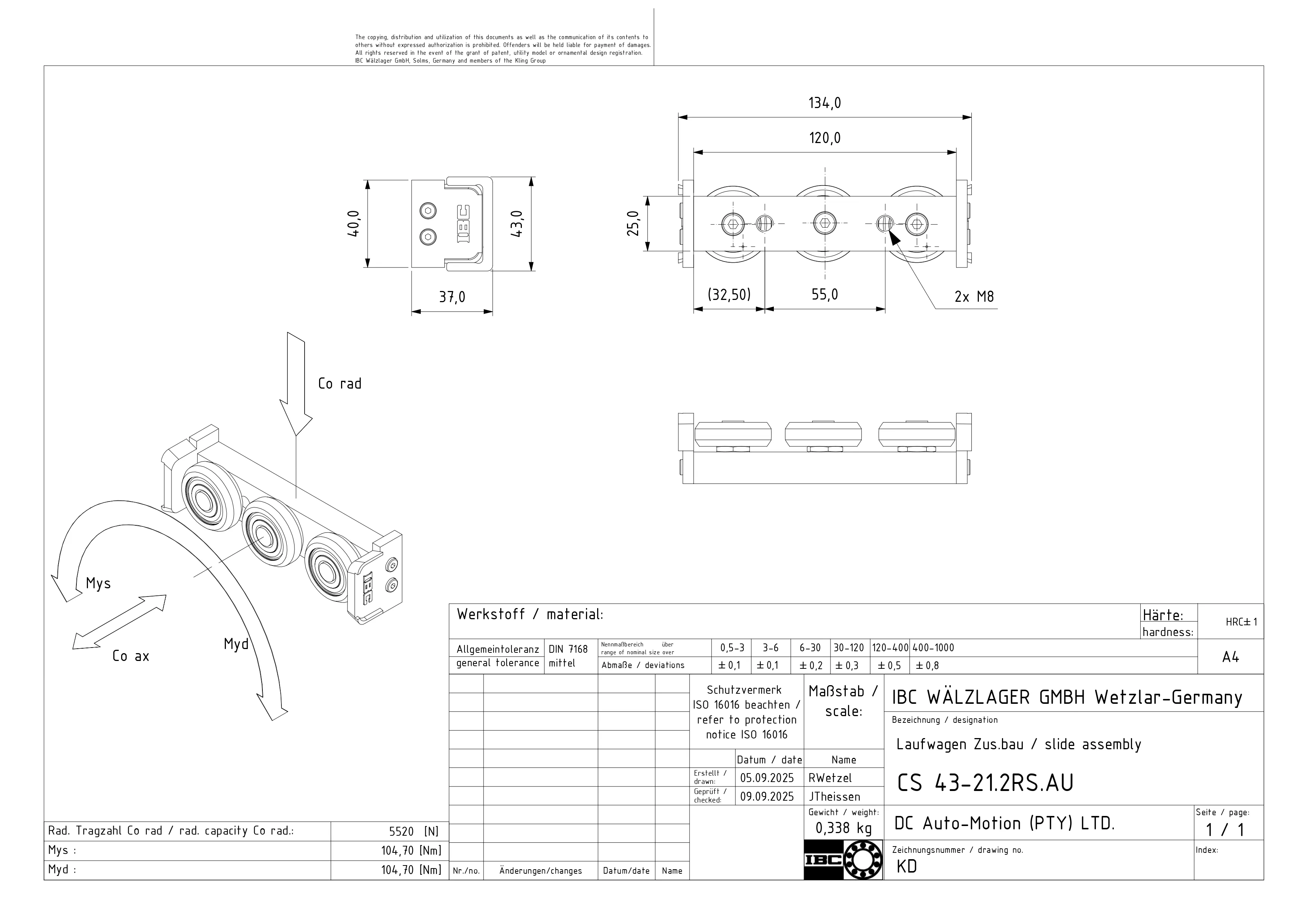

KD-CS 43-21.2RS.AU

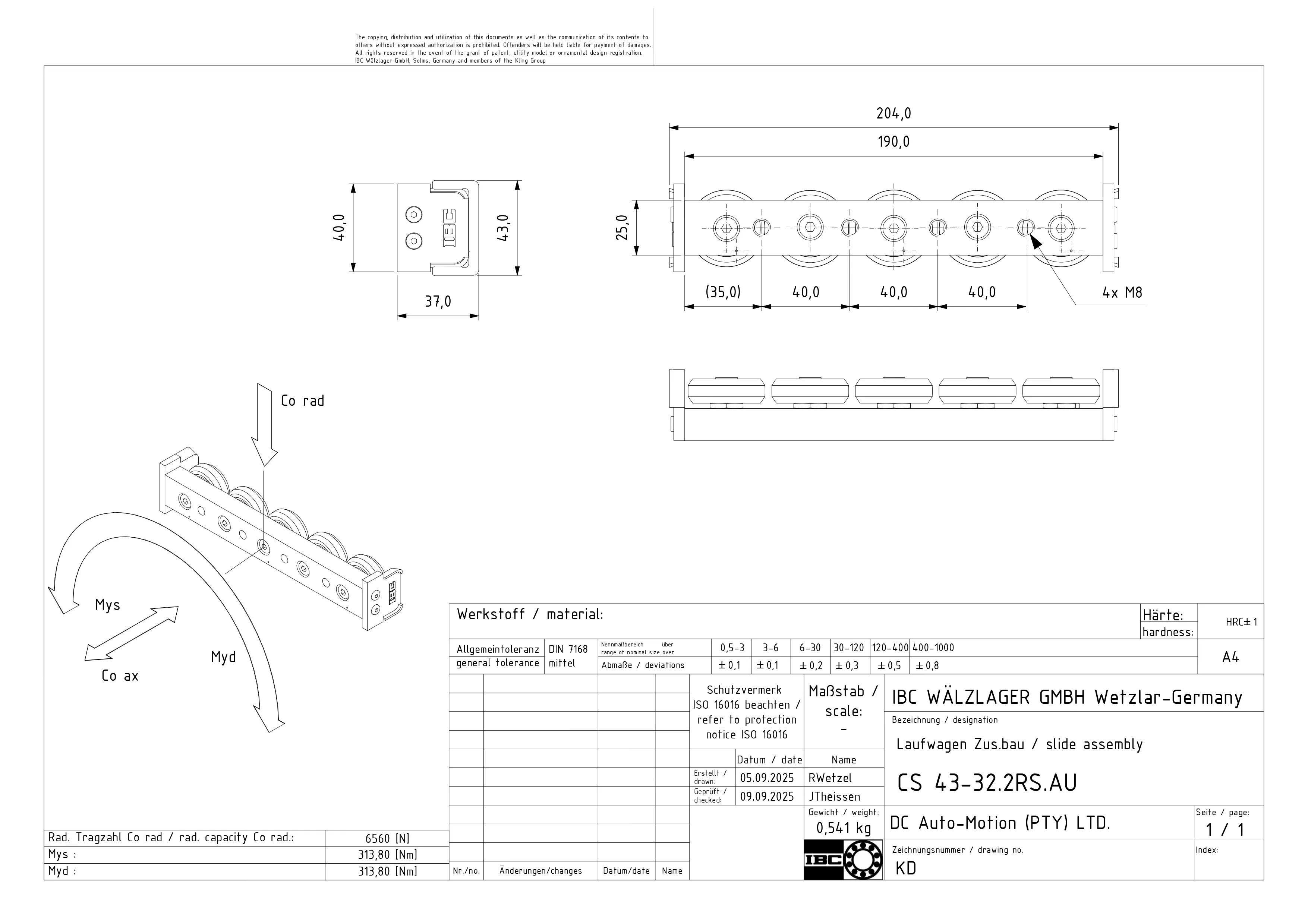

KD-CS 43-32.2RS.AU

STANDARD FIXED SLIDERS – CL AXS SERIES

The CL Series linear sliders feature a compact, standard body design that provides an excellent balance of load capacity, rigidity, and space efficiency. Available in 3-roller and 5-roller fixed configurations in sizes 28 and 43, these sliders deliver fully constrained, accurate motion with stability suited to a range of precision applications.

KEY FEATURES

  • Compact medium-size body for balanced performance
  • Fixed slider design for precise fully constrained motion
  • 3-roller option for efficient medium-load applications
  • 5-roller option for enhanced load capacity and rigidity

BEST FOR

  • Precision guiding and stable machine motion
  • Medium to high-load industrial applications
  • Dual-rail systems where accurate locating and stiffness are required

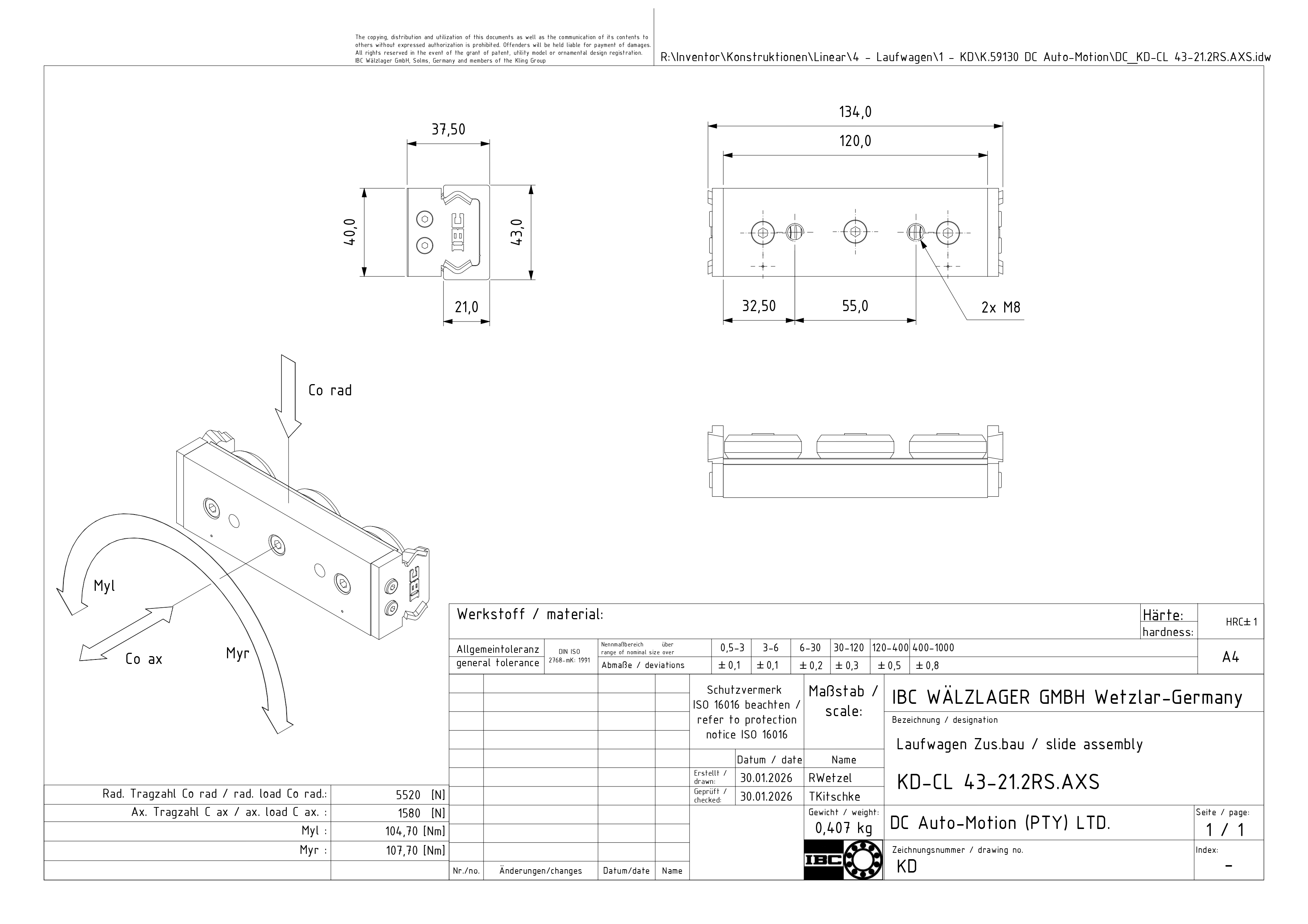

DC_KD-CL 43-21.2RS.AXS_page-0001

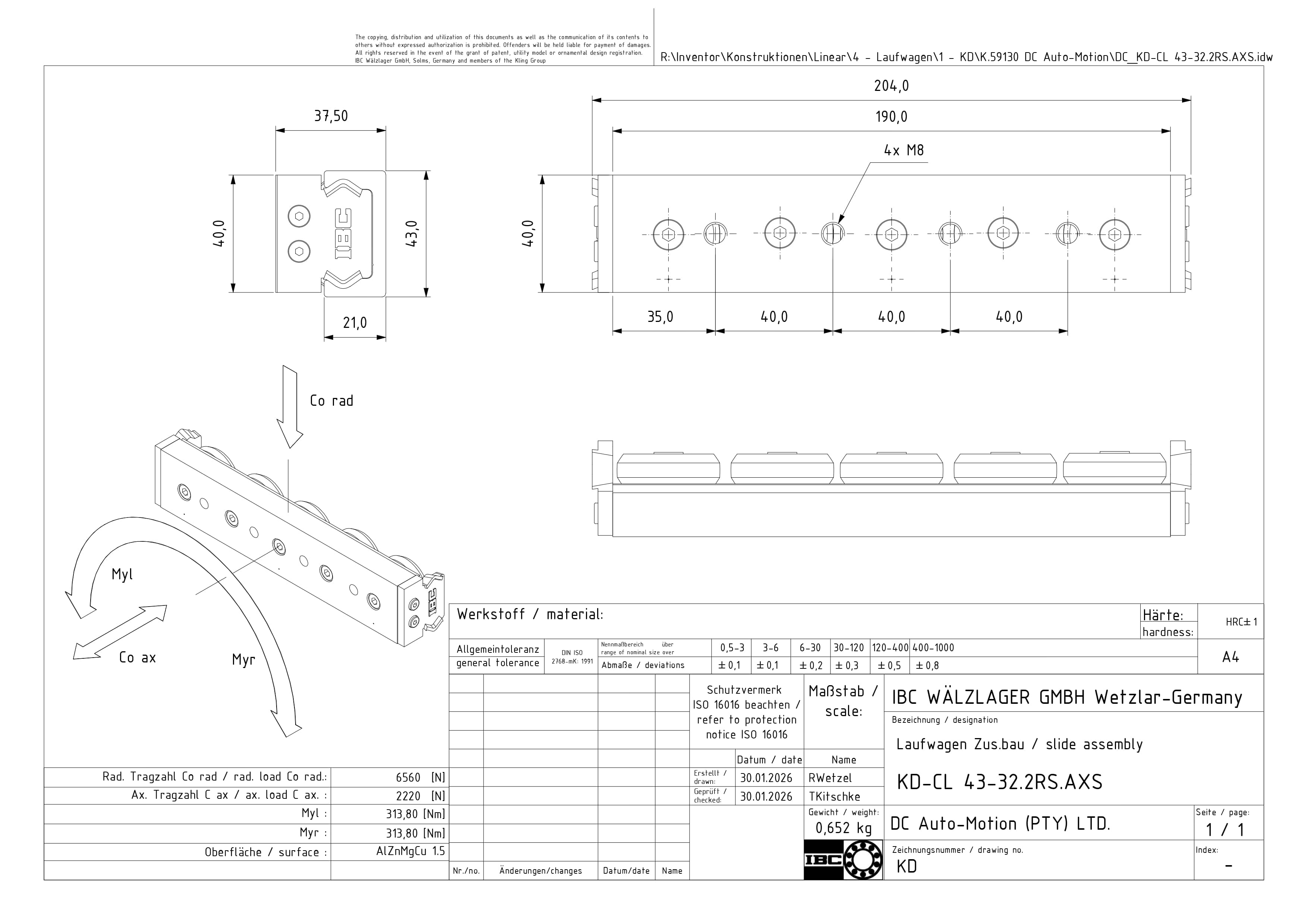

DC_KD-CL 43-32.2RS.AXS

Standard Float Sliders – CL AUS Series

The CL Series float sliders are available in 3-roller and 5-roller configurations and are designed to absorb rail misalignment, preventing binding and simplifying installation in medium-load applications. Offered in sizes 28 and 43, they deliver smooth, reliable motion with built-in flexibility.

KEY FEATURES

  • Floating design compensates for alignment and installation tolerances
  • 3-roller option for compact versatile performance
  • 5-roller option for improved stability and higher load capacity
  • Controlled lateral movement for reduced binding and smoother travel

BEST FOR

  • Systems with moderate alignment variation
  • Medium to higher load applications requiring flexible motion
  • Long travel or dual-rail setups needing stable float behaviour

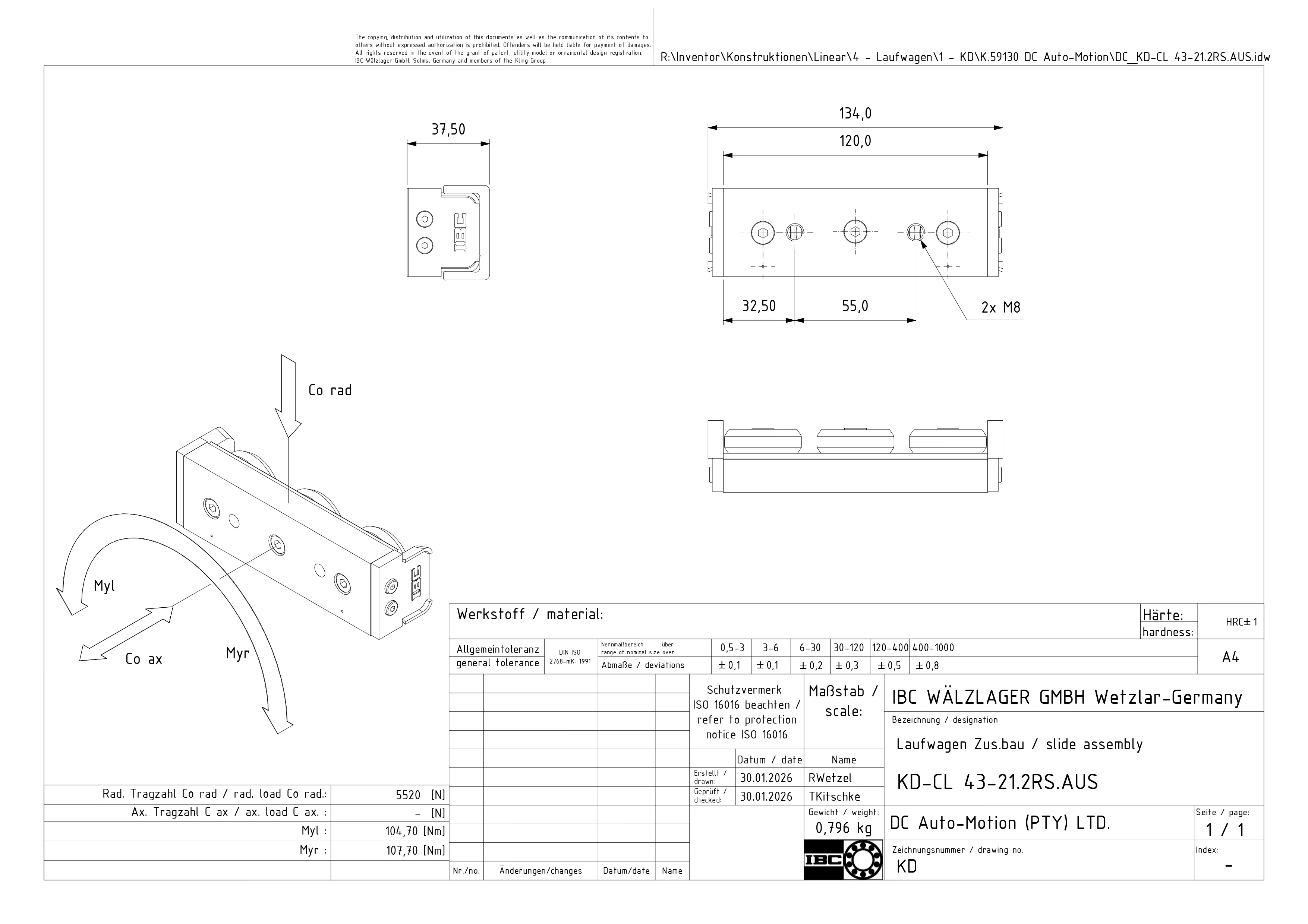

DC_KD-CL 43-21.2RS.AUS

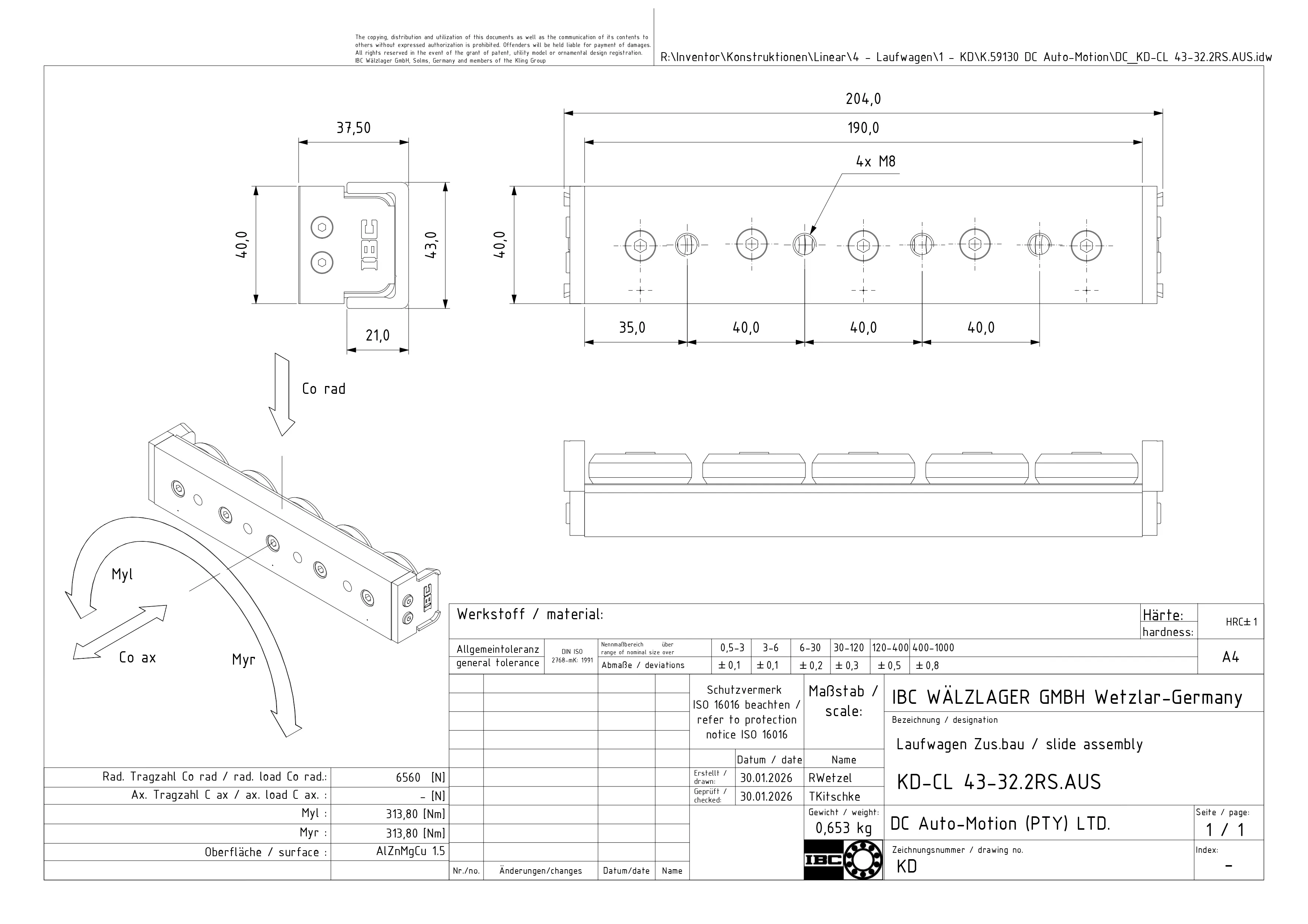

DC_KD-CL 43-32.2RS.AUS
